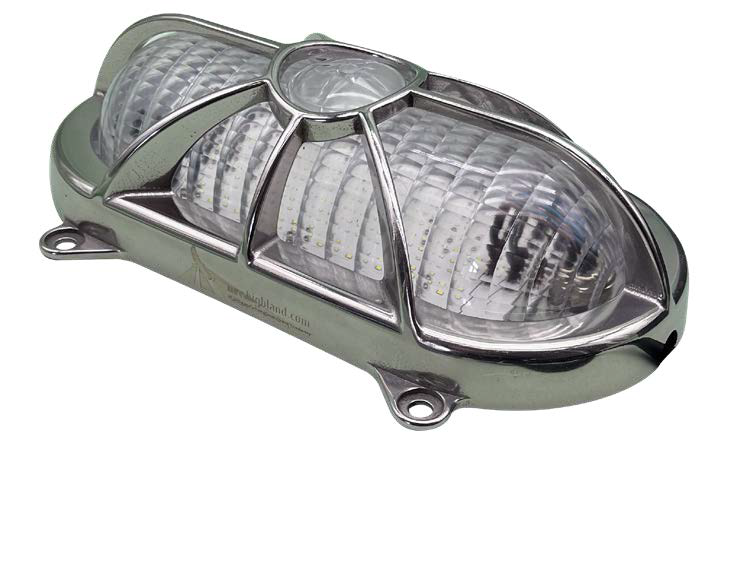

Marine LED Bulkhead Light – Navy BH Series (IP69K Rated)

Built for durability and reliability, this Marine LED Bulkhead Light is designed to perform in the toughest environments. With an IP69K rating, this fitting offers maximum protection against water, dust, and high-pressure washdowns — making it ideal for marine and industrial applications.

Compact, efficient, and robust, it’s the perfect solution for accommodation areas, corridors, engine rooms, and exterior walkways on vessels and offshore installations.

💡 Key Features

• Ultra High Protection – IP69K / IP66 rated for extreme environments
• Marine-Ready Design – Built to withstand harsh and corrosive conditions
• High Efficiency Output – Up to 120 lm/W
• Compact & Low Profile – Ideal for tight spaces and bulkhead mounting

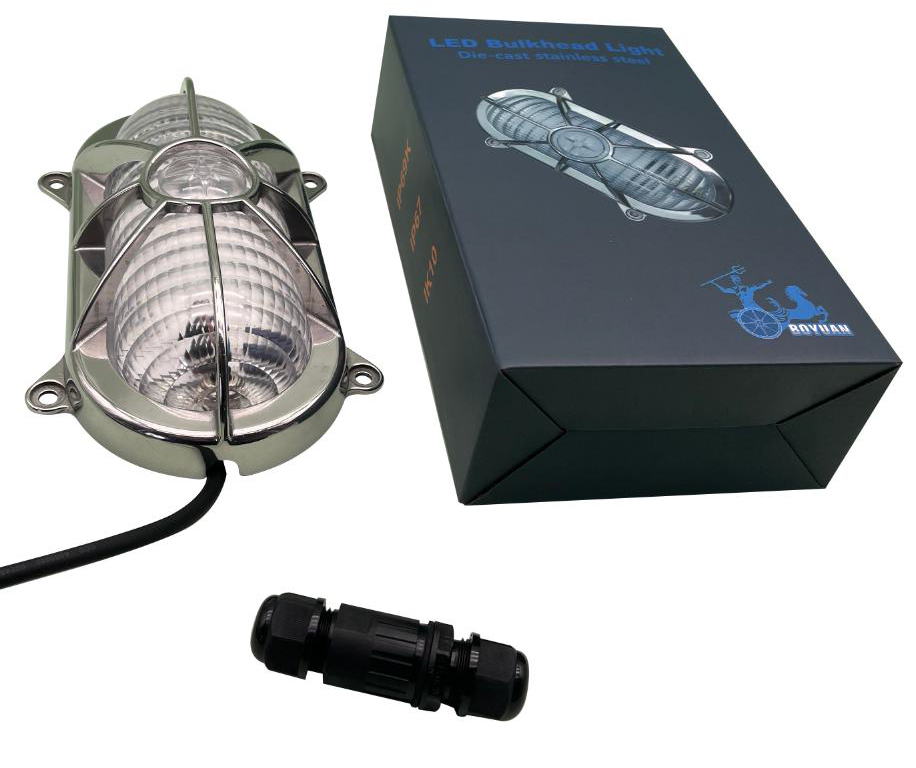

• Supplied with IP68 Connector – Quick and secure installation
• 5 Year Warranty for long-term reliability

🔧 Specifications

• Power Options:5W/10W/15W/ 20W
• Voltage Options: AC220V or 24V DC
• Lumen Output: 120 lm/W
• Power Factor: >0.9
• CRI: >80Ra
• Beam Angle: 120°
• Colour Temperatures (CCT):
  • 3000K – Warm White
  • 4000K – Natural White
  • 6000K – Cool White
• IP Rating: IP69K / IP66
• Cable: 1 metre with IP68 waterproof connector

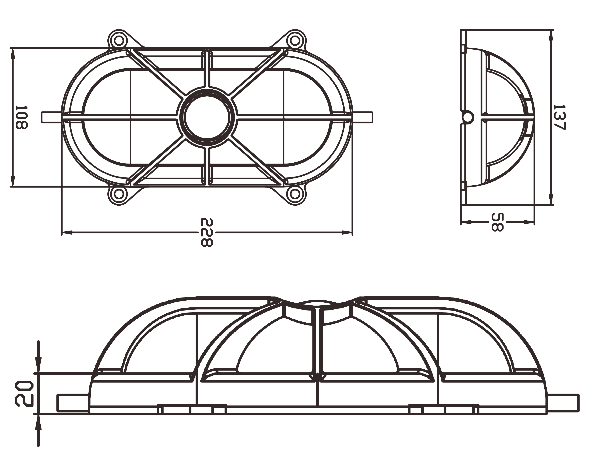

• Dimensions: 228mm (L) x 137mm (W) x 58mm (H)

🌊 Built for Marine & Industrial Use

Engineered for demanding conditions, this bulkhead light is ideal for:

• Ship accommodation areas
• Engine rooms & service spaces
• Deck walkways & stairwells
• Offshore platforms
• Industrial facilities requiring washdown protection

⚙️ Why Choose This Bulkhead Light?

• Withstands high-pressure cleaning and saltwater exposure
• Provides wide, even light distribution (120° beam)
• Designed for long service life with minimal maintenance
• Reliable performance in both AC and DC systems

👉 Need help specifying lighting for your vessel or project?
Get in touch — we’ll help you choose the right solution.
